4. The Ditchburn Mk2R Music Maker 30
Restorations.
PART 1:  Karl Dawson’s  MK2R Music Maker 30 Serial Number 2594
The Amplifier has been repaired by Geoff Young ( the Jukebox Man )
The leaky electrolytic capacitors have been replaced
A NOS tonearm and pick-up was found in Russia
The Crystal Pickup was sealed in its tin and on its original transit mount
This Machine first started its life as a MK2 16 selection 78 RPM machine, at some point between 1950-52 it was returned to the Dock Road factory in Lytham and converted to a 30 play 45 RPM machine, the original Simplex Mechanism was partially constructed in the USA by Wurlitzer, but the 30 Play conversion was designed totally by Ditchburn, as far as we know Wurlitzer never made a 30 play 45 rpm mechanism. I acquired this machine from a very nice guy called Dean who lived near Middlesbrough, I went round to his house to pick it up and he kindly helped me load it into the car, although it was not working it was complete and everything was there including the original Ditchburn / THC amplifier, it was a great feeling taking this machine back home to Lytham, it felt like she was returning to her home town.

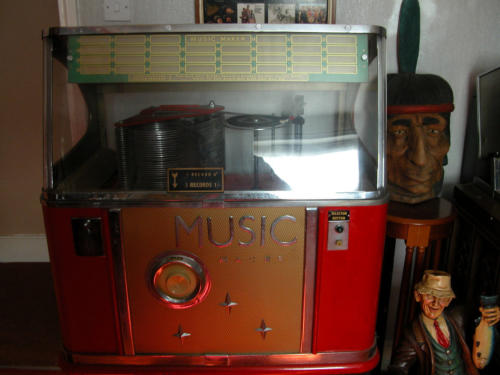

Photo Ref: DB243  Courtesy of Karl Dawson. Unrestored MK2R
Photo Ref: DB244  Courtesy of Karl Dawson. Unrestored MK2R
Photo Ref: DB245  Courtesy of Karl Dawson Un-restored MK2R

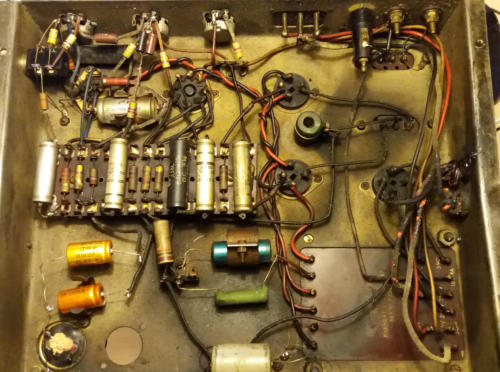

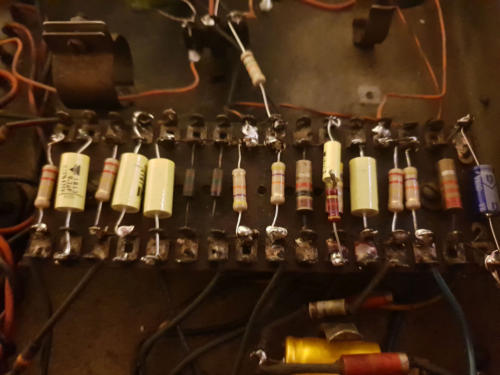

Once the machine was at home, the first thing i did was remove the  Amplifier, there were quite a few capacitors that showed signs of Electrolyte leakage, i was fortunate at the time to be working in Lincoln and I was aware that Geoff Young ( the Jukebox man ) had a workshop restoring Jukeboxes in Lincoln, so i took the amp with me to work and dropped it off at Geoffs workshop, our main concern was the PX4 output valves, although they looked in good condition it was unknown if the were working and replacing two of these could cost me around £800… Geoff contacted me a few weeks later to tell me that after testing them they were fortunately both intact and working. that was great news, i had asked Geoff originally to fully strip down the Amp and fully restore it … but he advised me that it would be better to keep it in its original condition, as it would be impossible to recreate the original marbled paint finish, this i now totally agree with him. when i went to pick the amp up Geoff played some vinyl through the amp and to me it sounded a fantastic very warm sound.

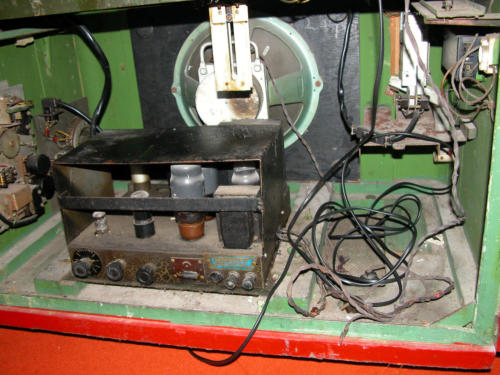

Photo Ref: DB246  Courtesy of Karl Dawson   Un-restored MK2R AMP

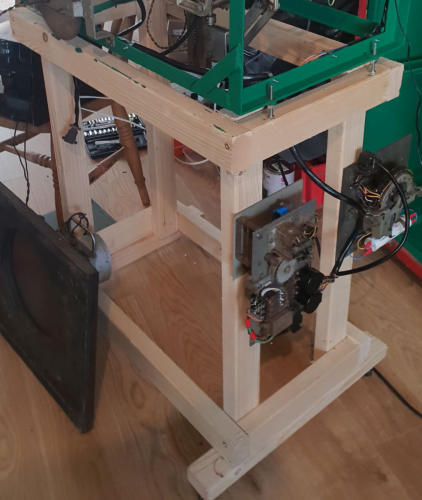

When talking to Geoff Young, we discussed the pickup, it originally had a acos HGP-39 Crystal Pickup, but this at some time had failed on my machine and a magnetic pickup had been glued on the bottom of the tone arm, because the crystal is made from a Rochelle salt substrate it is very susceptible to moisture and heat damage, so the chances of getting a working replacement was very slim, well thank god for Google and ebay. I was googling HPG39 and found a photo of a Acos tone arm in a box currently situated in Russia, the guy selling it wasn’t shipping to the UK, so using Google translator i contacted him via the Russian Ebay website and asked him if he would ship to the UK, and thankfully he said he would, after spending £85 inc shipping, it arrived 3 weeks later , and it was a brand new tonearm and HPG 39 cartridge still in the retail box although it was nearly 70 years old … but i was not sure if the crystal had been subjected to moisture or heat ? My next stage of the restoration was to remove the simplex mechanism and check out the mechanics to make sure they were all working before putting any power on the machine.  to do this i needed to be able to move the mech around also whilst being able to get access and operate all the parts, i decided to build a trolley cart that would support the mech and also allow me full access.

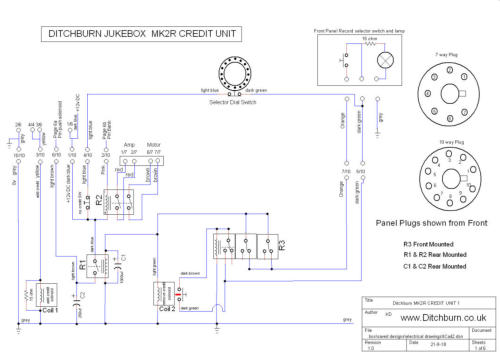

The next stage was also to document the wiring on the juke box as would need to be able to put the wires back into the correct positions on reassembly, also as the website had no manuals for these machines, it would be good to generate diagrams the historical factor. these have now been added to the MK2R Technical section.
Photo Ref: DB250  Courtesy of Karl Dawson.
Photo Ref: DB251  Courtesy of Karl Dawson.
After generating the electrical diagrams, i decided power up the machine and find out if there were any mechanical issues ? Click on the YouTube Video below to view the results.
Contrary to my statement in the video that i wouldn’t be stripping down the machine … after closer inspection i found quite a few things that were wrong or needed attention, so I decided a strip down was they way to go, we will look at this in Part 2.
Coming soon…  PART 2:  Karl Dawson’s  MK2R Music Maker restoration
